- Width2.0 cm
- Diameter26.9 mm
- MaterialStainless steel
- ColourBlue
- ManoMano ReferenceME51287761
- Product code1205t304020m6
Â
Ideal for use with Unistrut and Oglaend metal framing system channels
Â

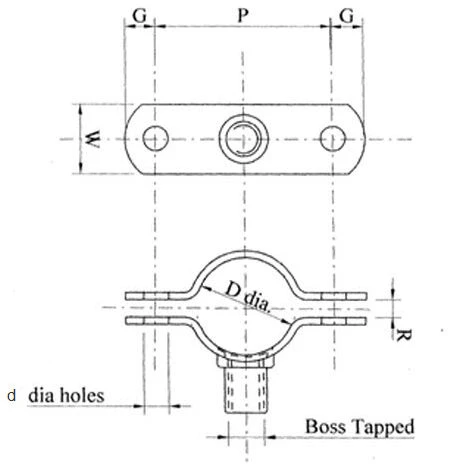

For Pipe Outside Diameter = 26.9 mm
hole diameter ‘d’= 7mm
hole center to edge ‘G’= 10mm
Material width ‘W’= 20mm
material thickness ‘T’= 3 mm
Gap ‘R’= 4mm
NB= 20 mm
D= 27mm
P= 53mm
Safe Working load = 100 kgf
Proof load = 150 kgf
Supplied with 2 – M6*25 stainless steel sets scews, full nuts and lock nuts
Â
T304 Stainless steel provides a corrosion and oxidation resistance, however it can tarnish. Used extensively in every day life, but if you need a higher level of corrosion resistance such as in a marine environment look for T316
