T304 Stainless Steel Munsen Type Bossed Pipe Clip M8 Boss – Pipe OD 16-19 Mm

T304 Stainless Steel Munsen type bossed pipe clip M8 Boss – Pipe OD 16-19 mm

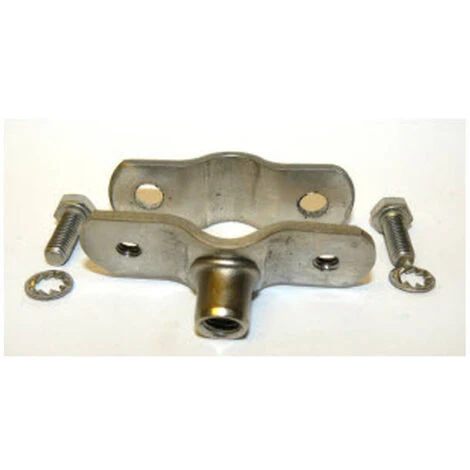

M8 T304 Stainless steel bossed clip, supplied with 2 M6*16 stainless steel set screws complete with shakeproof washers

Ideal for use with Unistrut and Oglaend metal framing system channels

For easy site assembly, the bottom half clip is tapped M6. The bolt is supplied with a shakeproof washer to dispense the need for a locking  nut

Size Pipe mm: 16-19

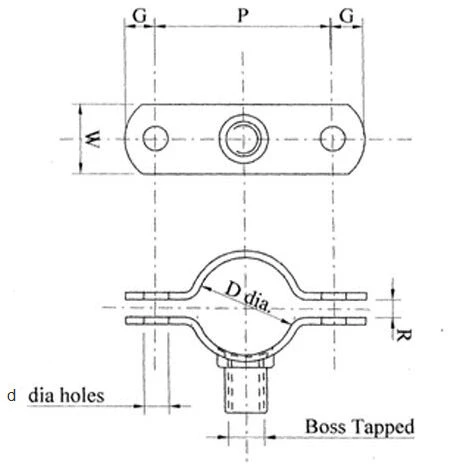

G = 10 mm
d = 7 mm
W*T = 20*3mm
R = 4 mm
D mm: 19
P mm: 46
Safe Working Load Kgf: 100
Proof Load Kgf: 150

T304 Stainless steel provides a corrosion and oxidation resistance, however it can tarnish. Used extensively in every day life, but if you need a higher level of corrosion resistance such as in a marine environment look for T316
