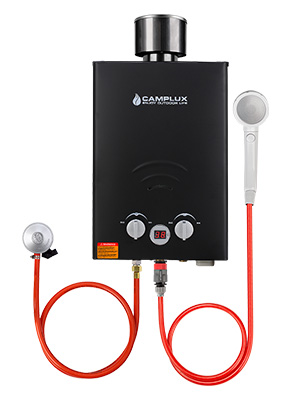

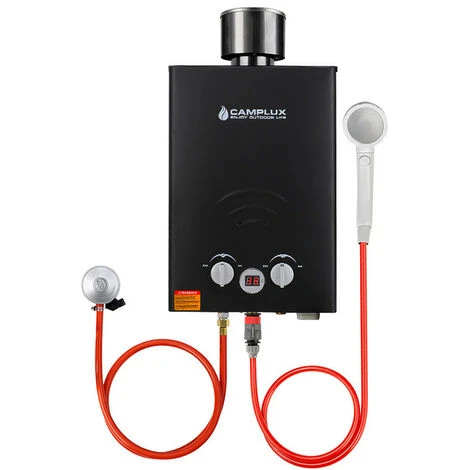

Instant Gas Water Heater With Rain Cap, CE Certified GAR Standard Tankless Propane Gas Boiler, Use For Outdoor Shower Camping RV Trip Horse Washing [Energy Class A+] Camplux BW158BC

View all

EASY TO SET UP AND USE



1. Mount the gas shower on the wall with provided installation kits.
2. Connect shower hose to the hot water outlet.
3. Connect water hose to the water inlet.
4. Connect gas regulator to the gas cylinder.
5. Check carefully gas leaking by spraying soap solutions on the connections.
6. Insert 2-D-cell batteries (not included).
7. Open gas valve and switch on the shower head, water flows, water heater turns on automatically, hot water comes out instantly.





Connect gas regulator and gas inlet brass fittings by torque wrench with torque force between 20-28 Nm.

Why Camplux?

Camplux dedicated to provide you an easy and efficient outdoor life style. Portability, energy saving and innovation are the three key elements for Camplux. With the most advanced technology in water heating, our tankless gas water heaters can save you up to 50 percent on water heating costs. They are also compact and wall-mounted so you save valuable storage space for a new closet!

• Please install the gas water heater in well-ventilated area.

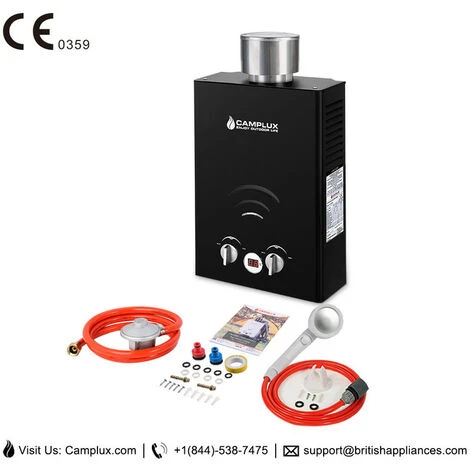

PACKAGE CONTAINS:

1 x Camplux BW158BC gas water heater

1 x Removal stainless steel rain cap

1 x Premium shower head with 150cm red hose and snap on connector

1 x G1/2” CE certified gas regulator with 150cm hose

2 x G1/2” water connectors

1 x Mounting accessories package(teflon tape & screws included)

1 x Instruction manual

• Max hot water output: 6L/min
• Overheat protection: at 75°C
• 37mbar for propane gas & 30mbar for butane gas
• Applicable water pressure: 0.25~8 bar
• Gas fitting nut and water fitting nuts: 1/2″ BSP



CHECK OUT THE DETAILS

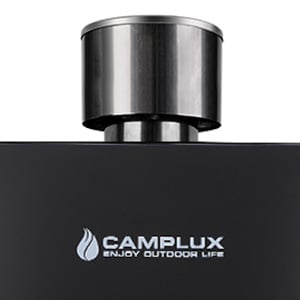

Stainless Steel Rain Cap Made of high-quality stainless steel, resistant to rust and corrosion; prevent it from accidentally shutting off in high wind and heavy rain conditions; also keep leaves, insects and other hazards from getting into the water heater, extending the life of your water heater.	Visible Water Temperature via LED LED temperature display for easy to know the outlet hot water temperature, useful for setting your suitable shower temperature and safely washing your horses, dogs, cats, etc..	Methods to Power the Unit Powered by 2-D-cell batteries so makes it great for off-grid. Runs off propane gas cylinder only (5-15 kg recommended). Burners start to work when water flow is incoming and off when the water is shut-off.



MULTIPLE APPLICATIONS

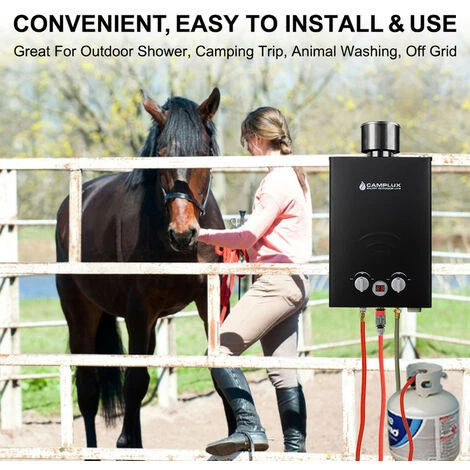

Outdoor Shower Enjoying outdoor shower with endless hot water during camping trip.	Hot Tub Supplement Filling your tub and having fun with your family and fellows.	Bathing Horses Offering your horse with a relaxing shower in the afternoon.	Washing Dogs Providing a comfortable sunbathe for your pet dog.

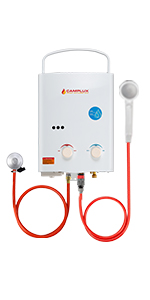

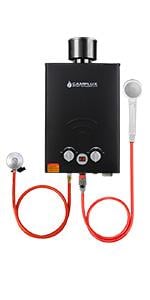

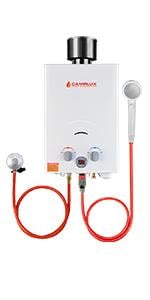

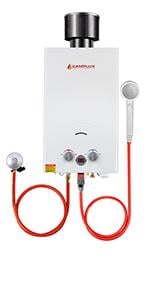

	AY132B	AY132	BW158BC	BW158C	BW264BC	BW264C
Flow Rate	5 L/MIN	5 L/MIN	6 L/MIN	6 L/MIN	10 L/MIN	10 L/MIN
Voltage	3 volts	3 volts	3 volts	3 volts	3 volts	3 volts
Water Pressure	0.25~7.5 bar	0.25~7.5 bar	0.25~8 bar	0.25~8 bar	0.25~8 bar	0.25~8 bar
Maximum Power Output	10 kW	10 kW	12 kW	12 kW	20 kW	20 kW

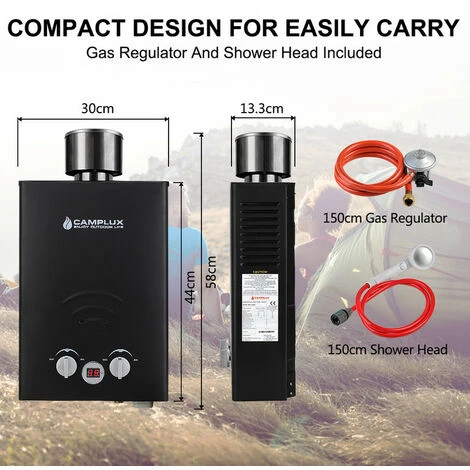

Dimension	37.6 x 29 x 11 CM	37.6 x 29 x 11 CM	58 x 30 x 13.3 CM	58 x 30 x 13.3 CM	73 x 33 x 18.4 CM	73 x 33 x 18.4 CM
Fuel pipe dimension	/	/	9 CM	9 CM	11 CM	11 CM
Power Source	2 “D” Cell Batteries	2 “D” Cell Batteries	2 “D” Cell Batteries	2 “D” Cell Batteries	2 “D” Cell Batteries	2 “D” Cell Batteries
Gas Type	Propane / Butane	Propane / Butane	Propane / Butane	Propane / Butane	Propane / Butane	Propane / Butane
