- Pressure16.0 bar
- MaterialBrass
- ManoMano ReferenceME69575952
- Warranty1 year
- Product codeY0059-IT2-230213-48336

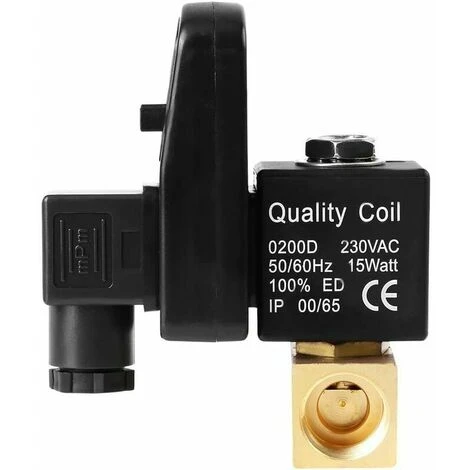

INSTRUCTIONS: This is a high quality, reliable condensate drain valve to maintain optimum operation of compressed air handling equipment
CAN BE PROGRAMMED: The timed electric drain valve can be programmed to discharge condensate at programmed interval to match conditions

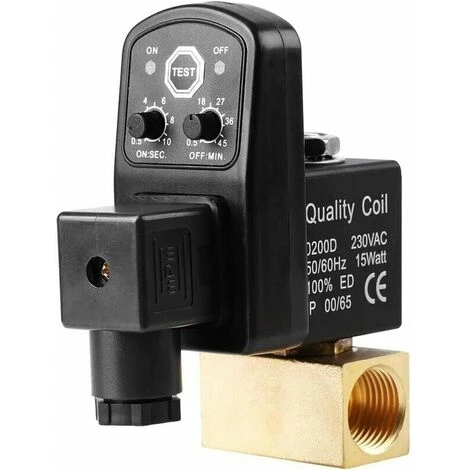

VALVE OPEN TIME AND CLOSE TIME: The time the valve is open is adjustable from 0.5 to 10 seconds and closing time is from 0.5 to 45 minutes
AUTOMATICALLY OPERATES: it operates automatically and wastes less compressed air when discharging condensate
Widely used: G1/2 thread is widely used and can fit most air compressors
Product Description
Size: AC230V
Features:
This is a reliable and high quality condensate drain valve to maintain the optimal operation of compressed air treatment equipment.
The timed electric relief valve can be programmed to discharge condensate at regular intervals to match conditions. The valve opening time is adjustable from 0.5 to 10 seconds and the closing time is from 0.5 to 45 minutes.
It works automatically and wastes less time. compressed air when discharging condensate. G1/2 thread is widely used and can fit most air compressors.
Specifications:
Voltage: AC110V, AC230V (optional)
Valve Material: Brass
Valve Type: Separate
Valve Operation Modes: Direct Acting
Interval (OFF): 0.5-45min.
Discharge time: 0.5-10sec.

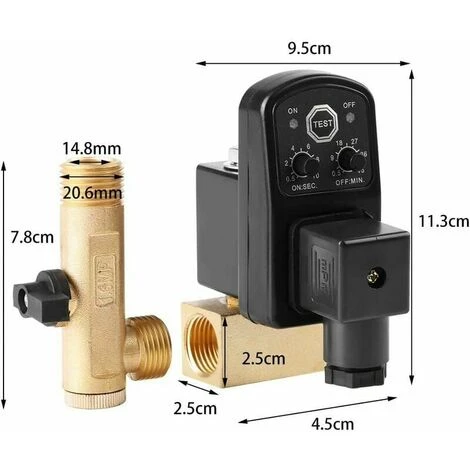

Thread: G1/2 (DN15)
Outer diameter of the thread: approx. 20.6mm
Pressure: 0-1.6Mpa
Fluid: Air, water
Fluid temperature: -5℃~80℃
Flow direction: one way
Package includes:
1 x drain valve
Note: AC230V can also be connected to AC220V.
