- Weight0.22 kg
- MaterialAcrylonitrile butadiene styrene (ABS)
- ColourBlack
- ManoMano ReferenceME72994847
- Warranty2 years
- Product codeM3-X028-20230426-11721-CJ
The pressure gauge has a low battery indicator and an automatic shutdown configuration function
The portable digital pressure gauge is made of durable ABS material for a long time

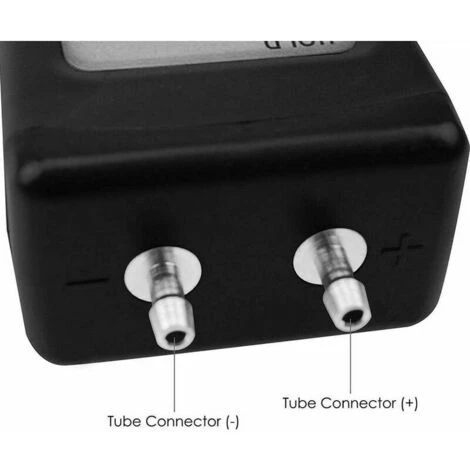

The pressure Gas Differential Pressure Gauge is suitable for ventilation and air conditioning systems and can measure 1 line air pressure or 2 line differential pressure, has 11 selectable units of measurement: kPa, psi,

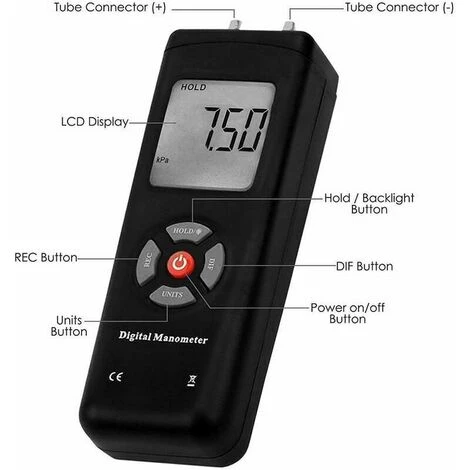

< p>The pressure gauge has a differential pressure measurement and a large LCD display with dual backlight< /p>
The pressure gauge tester is widely used for gas measurement, calibration and troubleshooting of all pressure systems gas pressure
1.Pressure range: ±10 psi
2. Accuracy: ±0.3% FSO (at 25°C)
3. Repeatability: ±0.2% (max. ±0.5% FSO)
4. Linearity/Hysteresis: ±0.29% FSO
5. Response time: 0.5 seconds
6. Over range indicator: high
7. Lower range indicator: low
8. Operating conditions: 0 to 50°C (32 to 122°F)
9. Storage conditions: -10 to 60°C (14 to 140°F)
10. Power supply: 9V battery
11. Dimensions 165 x 80 x 45mm
11. Weight: 220g
Quantity: 1 piece, black (without battery)
Note: Other items are not included, color is based on the first picture and other pictures only show the effect
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
Due to the manual measurement . Please allow deviation. Thank you!
