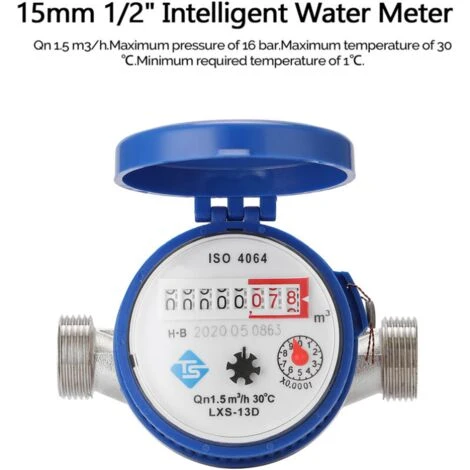

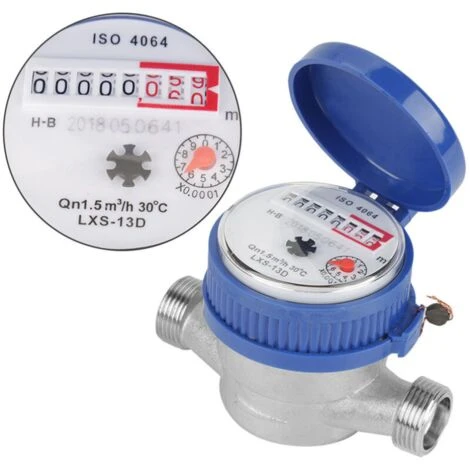

15mm 1/2 Inch Intelligent Water Meter Household Mechanical Rotor Type Cold Water Meter

Made of fine quality material, practical, easy to install and use, wide application range, has a long service life.

Features:

Compact design for most metering applications.

Antimagnetic, accuracy class B.

Can be installed vertically or horizontally.

Qn 1.5 m3/h.

Maximum pressure of 16 bar.

Maximum temperature of 30℃.

Minimum required temperature of 1℃.

The meter has an integral filtration strainer to stop large particles.

360° freely adjustable rotary counter.

Has a protective cover.

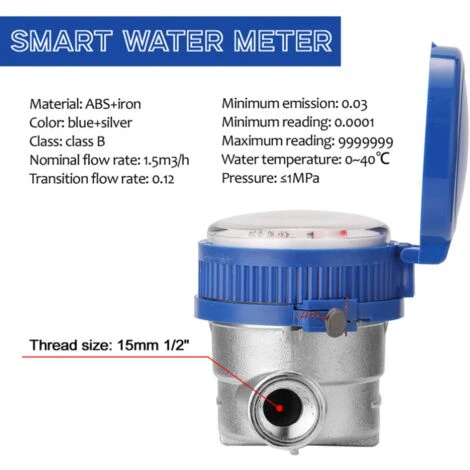

Specifications:

Material: ABS+iron

Color: blue+silver

Class: class B

Nominal flow rate: 1.5m3/h

Transition flow rate: 0.12

Minimum emission: 0.03

Minimum reading: 0.0001

Maximum reading: 9999999

Water temperature: 0~40℃

Pressure: ≤1MPa

Thread size: 15mm 1/2″

Item size: 115 * 85 * 75mm / 4.5 * 3.3 * 3.0in

Item weight: 611g / 1.3lb

Package size: 120 * 85 * 80mm / 4.7 * 3.3 * 3.1in

Package weight: 641g / 1.4lb

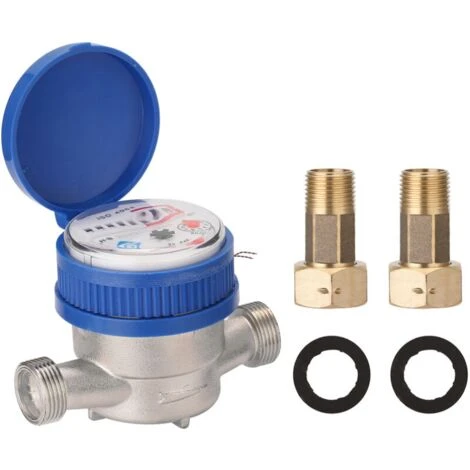

Packing List:

1 * Water Meter

1 * Set of Mounting Accessories
