- Weight0.2 kg
- Connection typeMale
- FittingAutomatic
- ManoMano ReferenceME71220106
- Product codeLGBC-1008
Main features:
High Stability Sensor
Automatic fault detection function

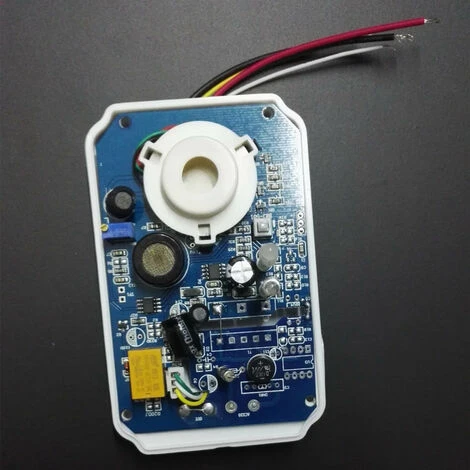

Manufactured by SMT process
Detect natural gas, liquefied petroleum gas
Automatic reset
Microprocessor control
Technical Parameters:
Working voltage: DC9-16V
Quiescent current: ≤90mA
Alarm current: ≤100mA
Rated power: ≤0.01W (DC12V power supply)
Alarm concentration: 10%LEL
Alarm sound pressure: ≥85DB/M
Installation method: wall installation
Alarm mode: sound and light alarm
Product size: 115*72*48mm
Product weight: 0.24 kg
Quantity: 100pcs/box
Gross weight: 16 kg
Net weight: 17 kg
Outer box size: 54.5*32*55.2cm
Suitable for multi-scene and multi-gas detection: This product can be used as an independent home alarm device, or as a front-end detector of an alarm system. Widely used in restaurants, hospitals, hotels, oil factories, garages, gas stations, etc., gas, liquefied natural gas, etc. RV RV etc.

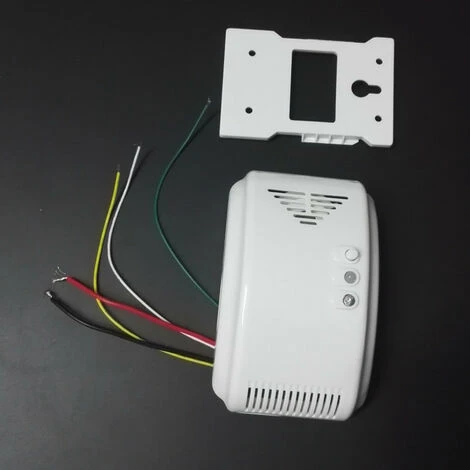

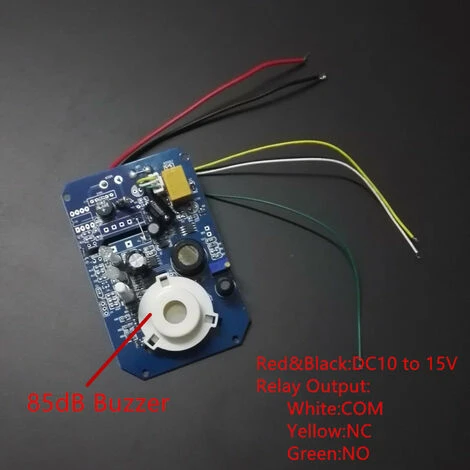

EASY INSTALLATION: The gas leak detector is designed with easy installation, you can easily wire it by reading the wiring instructions in the manual or the pictures here.
Automatic reset after alarm: the detector automatically resumes the detection state after the gas dissipates
Main functions: Detect whether there is gas leakage in the RV and all places that can provide 12V power supply, and sound and LED alarm when the gas leaks.
Warm Tips: Avoid installing the detector near the following sources of interference: direct air from vents, fans, doors and windows, steam sources, oil vapor, etc.
